Item# 58657

Rc Land Rover Defender 90

Cc01

MSRP: $329.00

This is a radio control assembly kit of the Land Rover Defender. It is an enduring vehicle that traces its lineage back to the original Land Rover cars first released ... Learn more

Rc Land Rover Defender 90

  1. Description

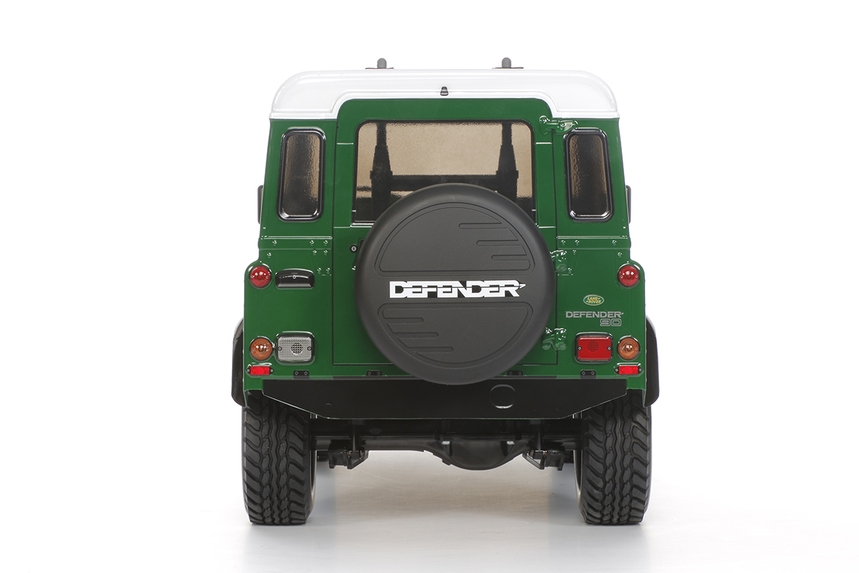

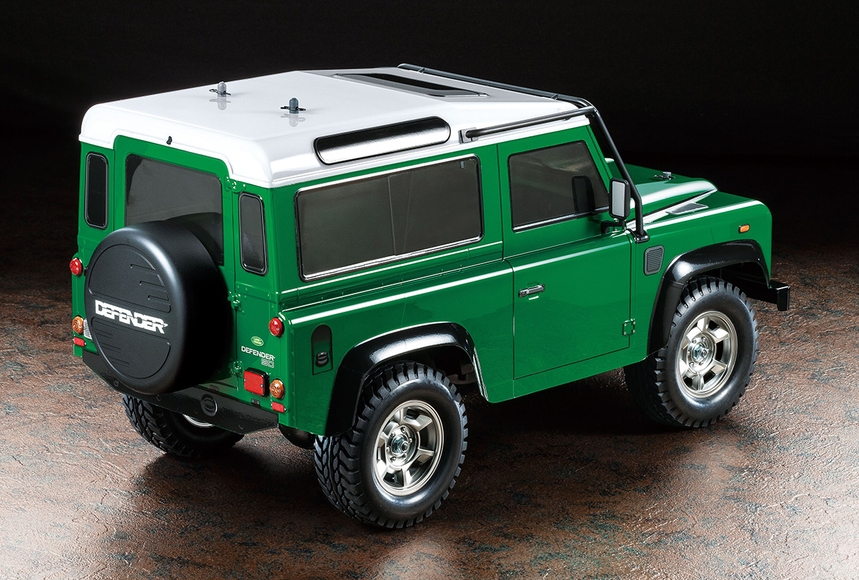

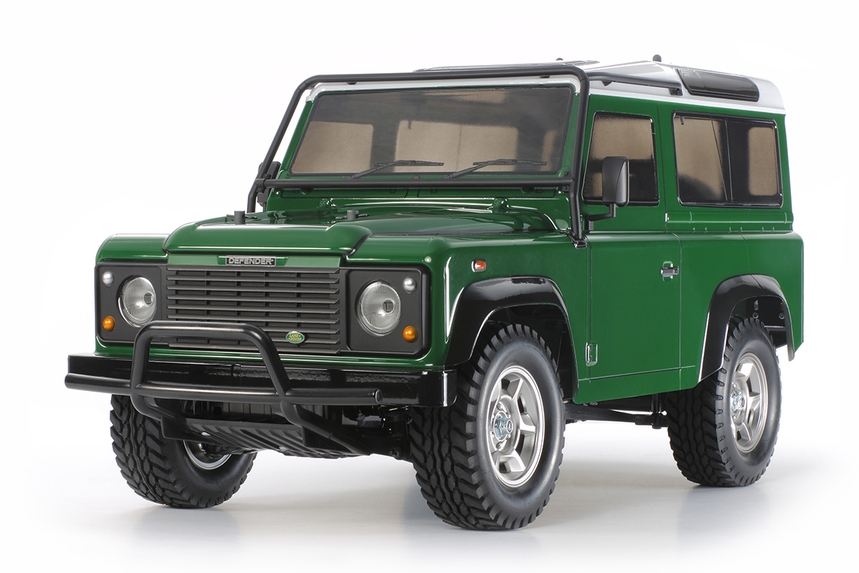

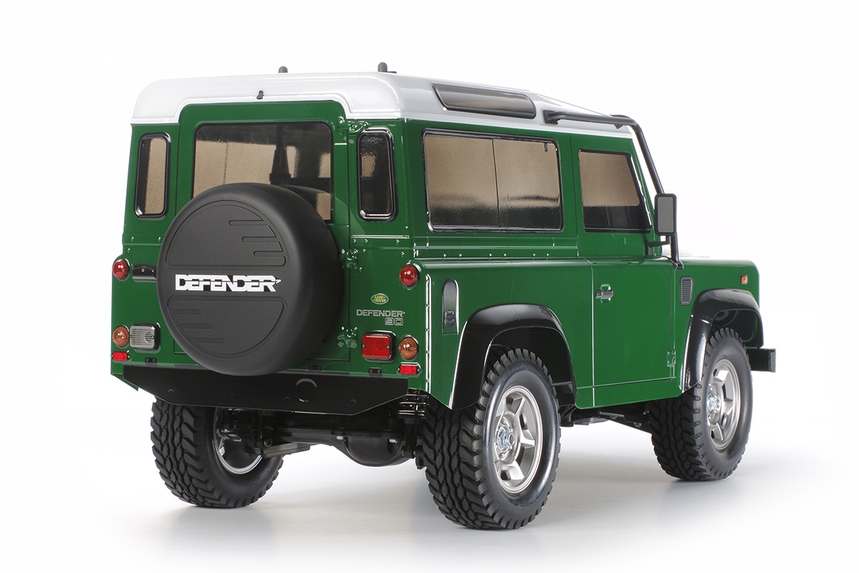

    This is a radio control assembly kit of the Land Rover Defender. It is an enduring vehicle that traces its lineage back to the original Land Rover cars first released in the immediate post-WWII era. This model recreates an early version of the Defender 90 (named on account of its wheelbase length), the shorter wheelbase variant of the car.

    CC-01 Chassis

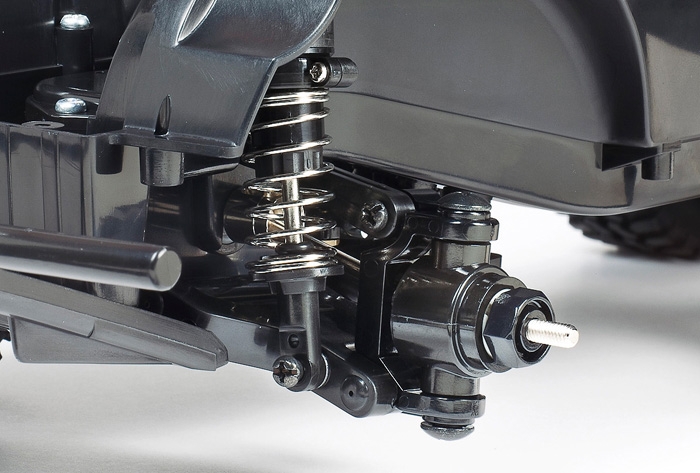

    Excellent ground-hugging, long-stroke suspension system consists of front double wishbone and rear 4-link rigid setups and is equipped with 4 oil dampers. Highly reliable and efficient full-time 4WD system features a front-mounted motor, which transmits power to the front wheels via the gearbox and to the rear wheels via the propeller shaft with universal joints. Front and rear differentials enable smooth cornering. For even greater off-road performance on rough terrain, the rear differential may be locked during assembly.

    • 1/10 scale R/C model assembly kit. Length: 457mm, width: 200mm, height: 214mm, wheelbase: 242mm.
    • Polycarbonate body.

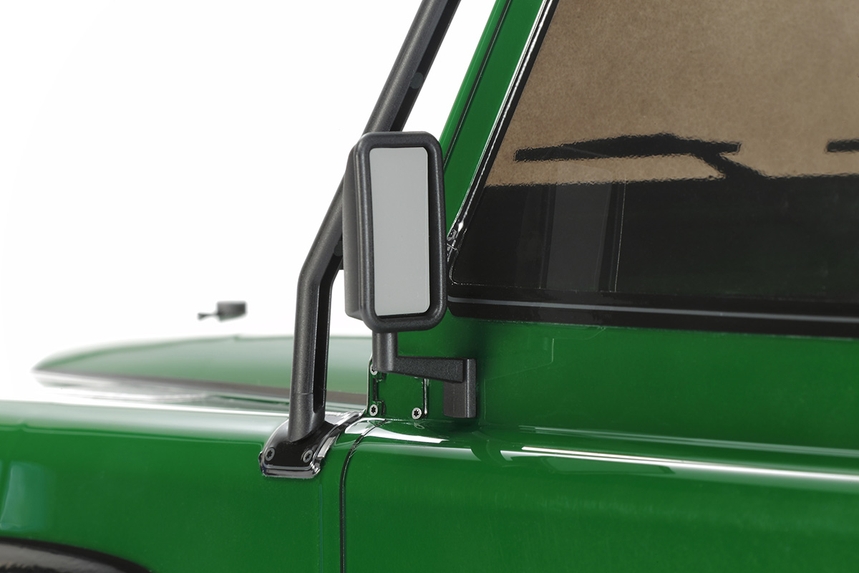

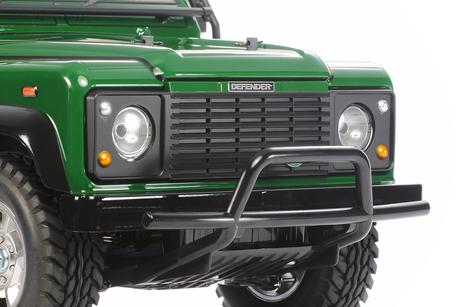

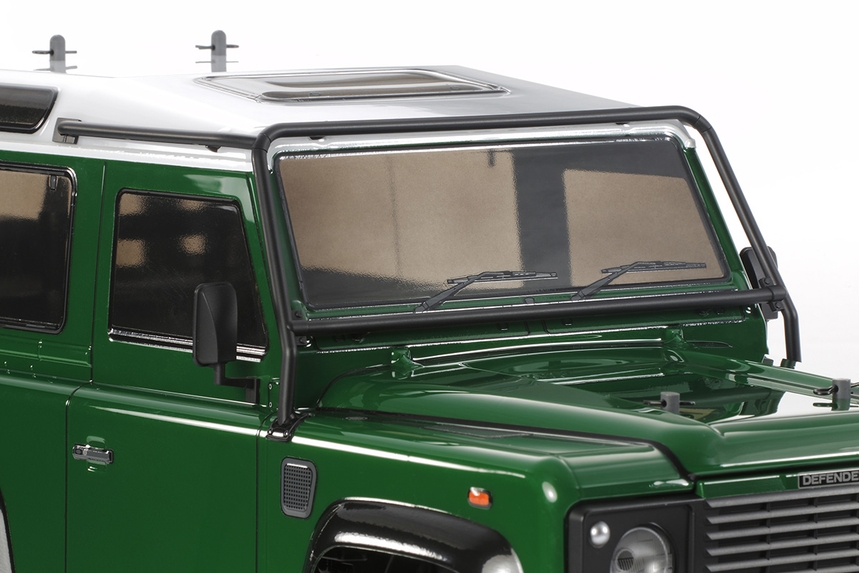

    • Includes separately molded ABS plastic parts for grille, side mirrors, light cases and tire cover.

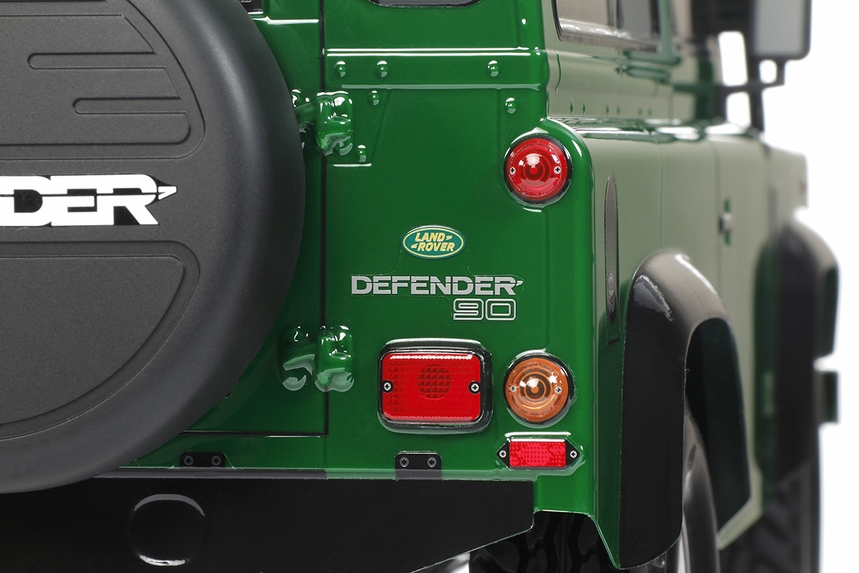

    • Compatible with 5mm-diameter LEDs (White) x2 for headlights and 5mm-diameter LEDs x6 for the rear.
    • Matte plated wheels are paired with realistic tires featuring authentic tread pattern.
    • Highly reliable CC-01 chassis features a full-time 4WD system and front double wishbone, rear 4-link rigid suspension equipped with 4 CVA oil dampers.
    • Includes Tamiya TBLE-02S ESC (electronic speed control) Capable of running sensor brushless motors and brushed motors alike. (21.5 Turn BL motor limit) (23 Turn brushed motor limit)
    • Requires: R/C equipment (transmitter, servo), battery pack and charger to complete and Tamiya PS spray paint.

    Parts Description
  2. Specifications

    • Adjustable Gear Ratio Yes
    • Bearings Plastic Bushings
    • Body Material Polycarbonate
    • Body Stickers Vinyl
    • Chassis Material ABS Plastic
    • Chassis Type CC-01
    • Construction Type Assembly Kit
    • Differential Type Gear Differential
    • Drive Type 4WD
    • Electronic Speed Control (esc) TBLE-02S ESC (electronic speed control) Capable of running sensor brushless motors and brushed motors alike. (21.5 Turn BL motor limit) (23 Turn brushed motor limit)
    • Led Lights Included
    • Motor 540 Brushed type
    • Requires A 2-channel radio, steering servo, 7.2volt battery & battery charger, and Tamiya PS paint.
    • Scale 1/10
    • Shock Damper Plastic Oil-Filled
    • Suspension Independent Front/4-Link Rear
    • Terrain Use Multi-terrain
  3. Paints Needed

    The colors below are the paints called out in the assembly manual of the model kit. All spray can paints (AS, TS and PS) are available in 100ml.

    1. Ps-1 White
      Ps-1 White 100Ml Spray Can
      Price: $7.00
    2. Ps-22 Racing Green
      Ps-22 Racing Green 100Ml Spray Can
      Price: $7.00
    3. Ps-31 Smoke
      Ps-31 Smoke 100Ml Spray Can
      Price: $7.00
    4. Ts-29 Semi Gloss Black
      Ts-29 Semi Gloss Black 100Ml Spray Can
      Price: $7.00
    5. Ts-43 Racing Green
      Ts-43 Racing Green 100Ml Spray Can
      Price: $7.00
    6. Acrylic Mini X-6 Orange
      Acrylic Mini X-6 Orange 10Ml Bottle
      Price: $2.50
    7. Acrylic Mini X-11Chrome Silver
      Acrylic Mini X-11Chrome Silver 10Ml Bottle
      Price: $2.50
