Item# 56344

Rc Grand Hauler

MSRP: $639.00
Find spare parts Find upgrade parts

Take control of your very own big rig - this R/C model assembly kit recreates a massive boxy, customized truck like those seen in North America. The model's ladder ... Learn more

Rc Grand Hauler

  1. Description

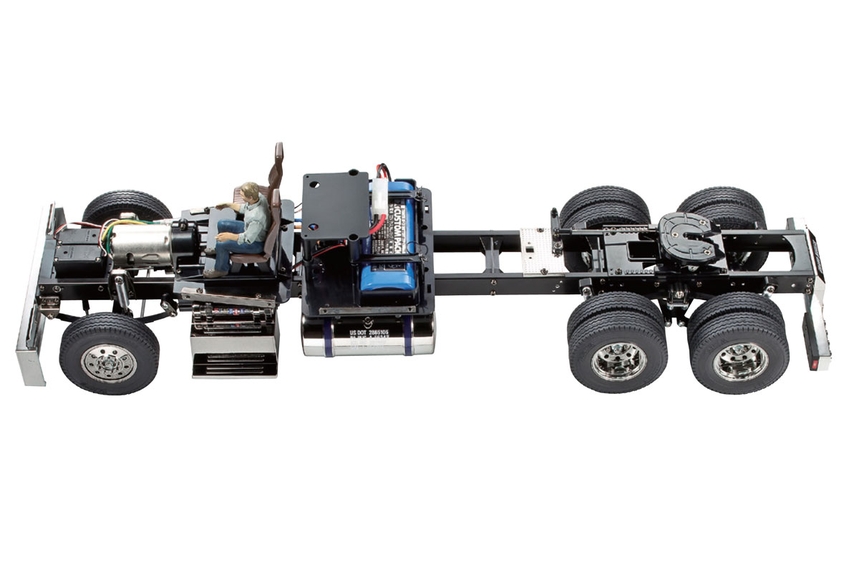

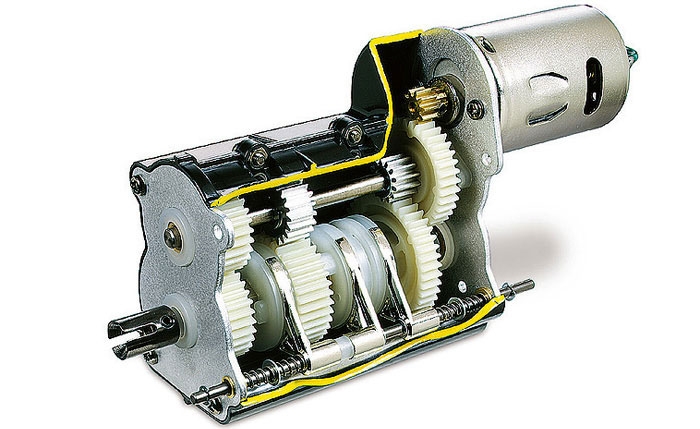

    Take control of your very own big rig - this R/C model assembly kit recreates a massive boxy, customized truck like those seen in North America. The model's ladder frame chassis features aluminum side channels with resin cross members and is equipped with a highly realistic suspension utilizing metal leaf springs and friction dampers. A front-mounted motor and 3-speed transmission power the two rear wheel axles, which are fitted with built-in differentials to enable smooth cornering. A 4-channel R/C system and multi-function unit allow you to drive the vehicle and experience realistic lights, sounds and vibrations.

    Realistic Lights, Sounds, and Vibration with the separately sold MFC Unit:

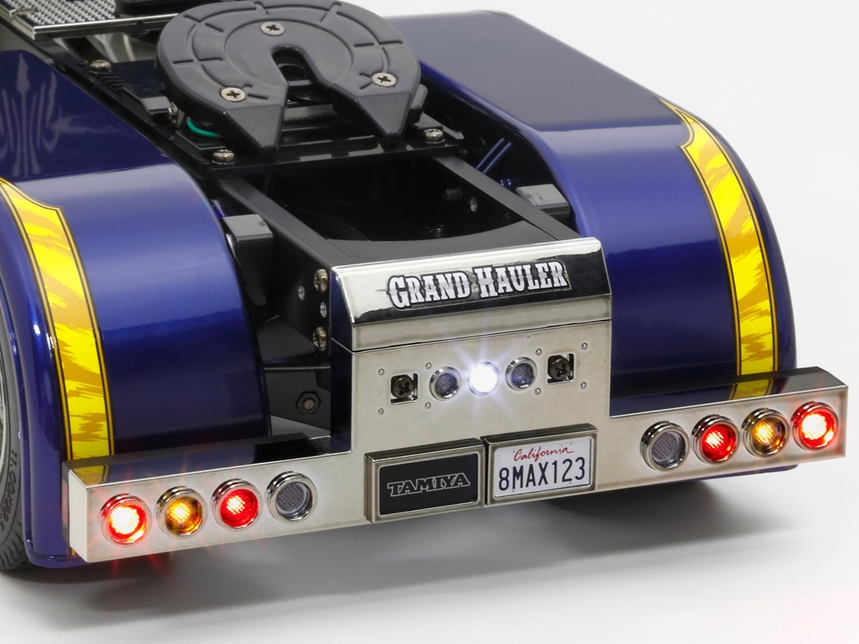

    The separately sold Multi-Function Control Unit (MFC) offers light, sound, and vibration operation to accompany your R/C truck experience. Engine sounds have been digitally recorded from the actual truck, and together with air horn, gear shifting, and many other realistic sounds, give you the feeling that you are driving the real thing! Headlights, brake lights, fog lamp, hazard lights and turn signal operations are also at your fingertips.

    6 Types of Semi-Trailer Separately Available
    6 types of trailer including semi-trailer, tank-trailer, and pole-trailer, are currently available. Attach any one of them via the coupler on the model to create an exciting combination over a meter in length.

    ●Length: 692mm, Width: 192mm, Height: 330mm, Weight: Approx. 3.9kg (*with all equipment attached) ●Wheelbase: 433mm+103mm ●Tread: 156mm (Front), 138mm (Rear, Double Tire) ●Chassis: Aluminum & Polycarbonate Resin Ladder Frame ●Suspension: Front/Rear Leaf Springs ●Caster Angle (Front/Rear): 0°/0° ●Camber Angle (Front/Rear): 0°/0° ●Toe Angle (Front/Rear): 0°/0° ●Dampers: Front/Rear Aluminum Friction Dampers ●Drivetrain: Rear 2-Axle Drive ●Transmission: 3-Gear Transmission (gear shifting operated from transmitter) ●Gear Ratio: (1st Gear) 32.49:1, (2nd Gear) 17.76:1, (3rd Gear) 10.66:1 ●Diff Gear: 3-Bevel Diff. ●Motor: Type 540 ●Tire Width: 22mm (Front/Rear) ●Tire Diameter: 83mm (Front/Rear) ●Required items to complete: 4-channel transmitter & receiver, MFC-01, 2 servos, 7.2V battery pack & charger ●Tamiya TS, Acrylic, and or LP paints

    Parts Description
  2. Specifications

    • Adjustable Gear Ratio 3-speed transmission
    • Bearings Metal bearings
    • Body Material ABS Plastic
    • Body Stickers Included
    • Chassis Material Aluminum & plastic
    • Chassis Type Semi-Truck
    • Construction Type Assembly Kit
    • Differential Type Gear
    • Drive Type 2WD
    • Electronic Speed Control (esc) Sold Separately Tamiya MFC-01 required item #56511
    • Led Light Buckets Yes
    • Led Lights Not Included, but sold separately
    • Motor 540-brushed type
    • Required To Complete 4-Channel Radio (Tamiya Attack), 2 steering servos, ESC, 7.2volt battery with compatible charger, and Tamiya TS & Acrylic-Lacquer Bottle Paints
    • Scale 1/14
    • Shock Damper Friction damper
    • Special Feature 1 Length: 692mm, width: 190mm, height: 300mm.
    • Special Feature 3 Features a tough ladder frame construction with aluminum side channels and plastic cross members.
    • Special Feature 4 Realistic drivetrain setup sees the front mounted motor powering twin rear axles.
    • Special Feature 5 Metal leaf spring dampers with built-in coil springs provide durable suspension.
    • Special Feature 6 Newly-designed 1/14 scale driver figure included.

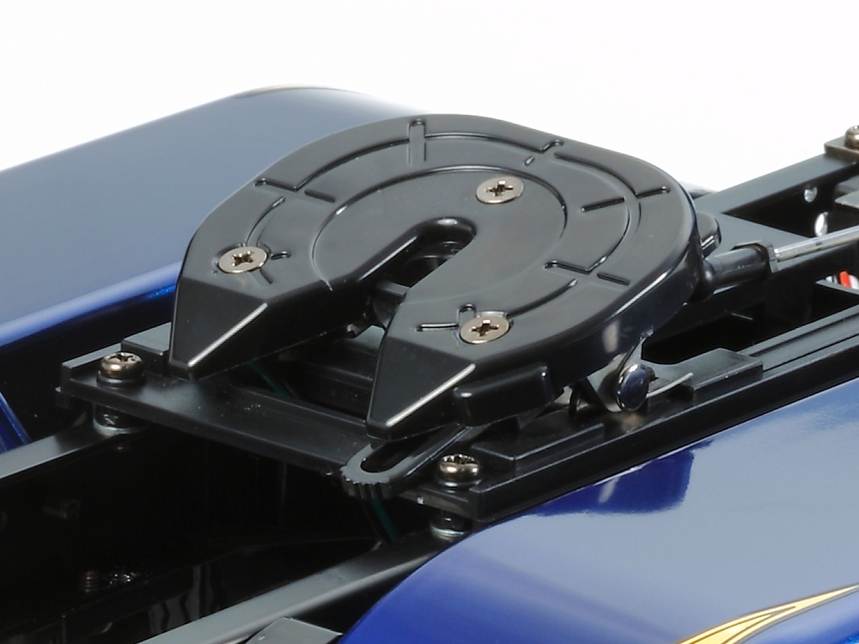

    • Special Feature 7 Coupler is included to enable connection with any currently available Tamiya 1/14 scale trailer.
    • Suspension Leaf Spring
    • Terrain Use On-Road
