Rc Ta04-S Chassis
-
Description
Tamiya presents the high-performance, sports version of the popular TA04 chassis used by R/C enthusiasts of all ages and levels of experience. Designed to race, this chassis comes with a full ball-bearing set to minimize drive loss and employs adjustable turn buckle shafts. The high efficiency 2 belt 4WD system, the 4-wheel double wishbone suspension, and the hardened resin double deck frame of the TA04 have been left unchanged. Just select the body and motor of your choice and you will have taken your first step into the world of true R/C racing!

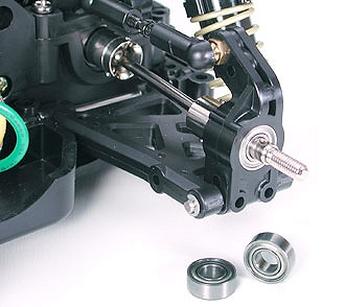

The chassis is equipped with ball bearings not only in the drive shaft, but in the steering arms as well. This allows for smoother driving and increased durability. Maintenance is made easier as well.
The front and rear upper arms, steering tie rods, and steering linkage all employ turn buckle shafts. The length of the shafts can be adjusted without removal for easy steering shaft adjustment.
The TA04-S chassis employs a high efficiency 2 belt drive 4WD system with an 83T spur gear. *Motor not included. -
Specifications
- Adjustable Gear Ratio yes
- Bearings shielded ball bearing
- Body Material n/a
- Chassis Material plastic
- Construction Type assembly kit
- Differential Type gear
- Discontinued True
- Drive Type belt
- Led Light Buckets no
- Led Lights no
- Motor not included
- Required To Complete 7.2 battery & charger
- Scale 1/10
- Shock Damper oil-filled damper
- Special Feature 1 TA04-S Chassis
- Special Feature 10 Damper: F/R CVAMiniII
- Special Feature 2 Overall Length: 365mm
- Special Feature 3 Overall Width: 184mm
- Special Feature 4 Weight Fully Equipped: 1,517g
- Special Feature 5 Tread F/R: both 162mm
- Special Feature 6 Caster Angle-F/R: 10deg/2deg
- Special Feature 7 Gear Ratio: 7.08:1
- Special Feature 8 Tire Width: F/R both 26mm
- Special Feature 9 Tire Diameter: F/R both 64mm
- Suspension fully independent double wishbone
- Terrain Use on-road
