Item# 58691

Rc 1998 Ford Escort Custom

Tt02

MSRP: $184.00
Find spare parts Find upgrade parts

This is a special custom (street spec) version of the 1998 Ford Escort. The body depicts the Ford Escort as a customized street version of the WRC car, and is based ... Learn more

Rc 1998 Ford Escort Custom

  1. Description

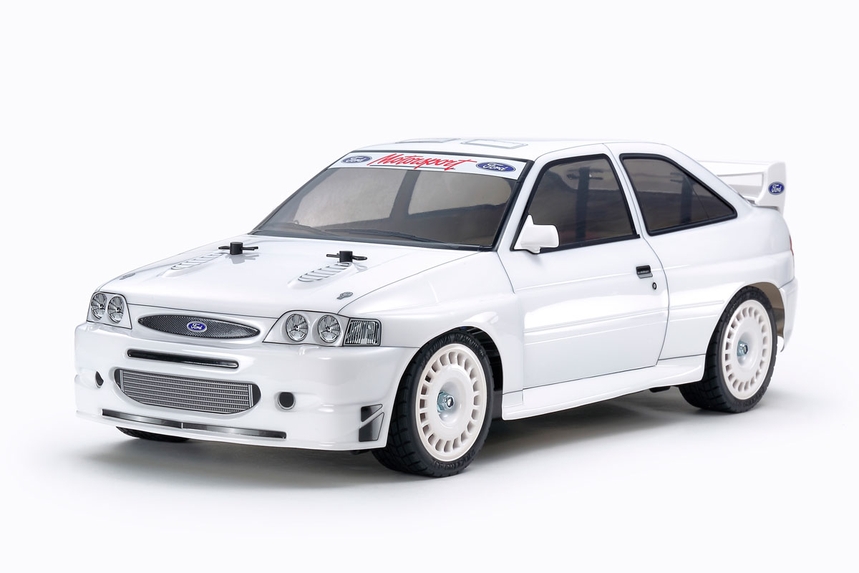

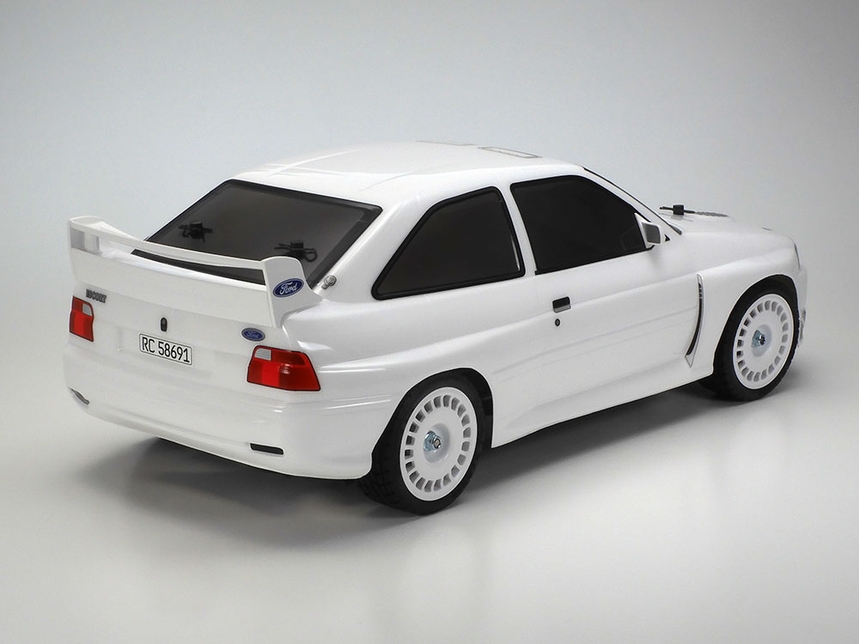

    This is a special custom (street spec) version of the 1998 Ford Escort. The body depicts the Ford Escort as a customized street version of the WRC car, and is based upon the TT-02 chassis. The actual car was powered by an inline-4 2-liter engine offering 300PS and 50Kgm of torque.

    TT-02: Adaptable, balanced shaft driven 4WD

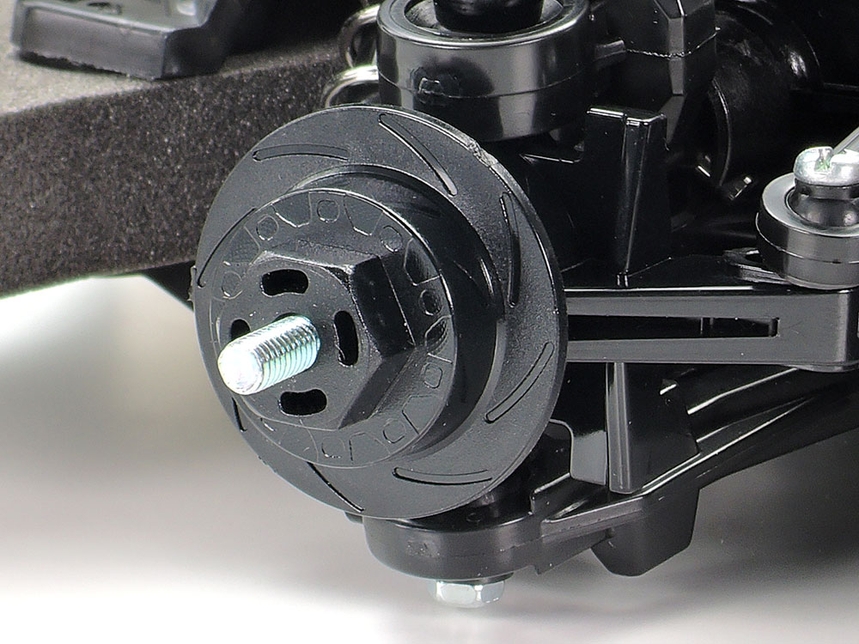

    The shaft-driven 4WD TT-02 chassis employs a longitudinal layout with the battery on the left and the motor on the right, to give excellent stability. In addition, it features identical left and right suspension arms and uprights for ease of assembly, plus easy-to-maintain gearboxes. It is a highly adaptable chassis, as it offers 2 different wheelbases, 2 ground clearance settings and 2 tread set-ups in addition to a range of 10 possible gear ratios. It is not short on looks either, with brake disc-shaped wheel hubs and stylish front bumper supports.

    • 1/10 scale R/C model assembly kit. Length: 425mm, width: 189mm, height: 145mm. Wheelbase: 257mm.

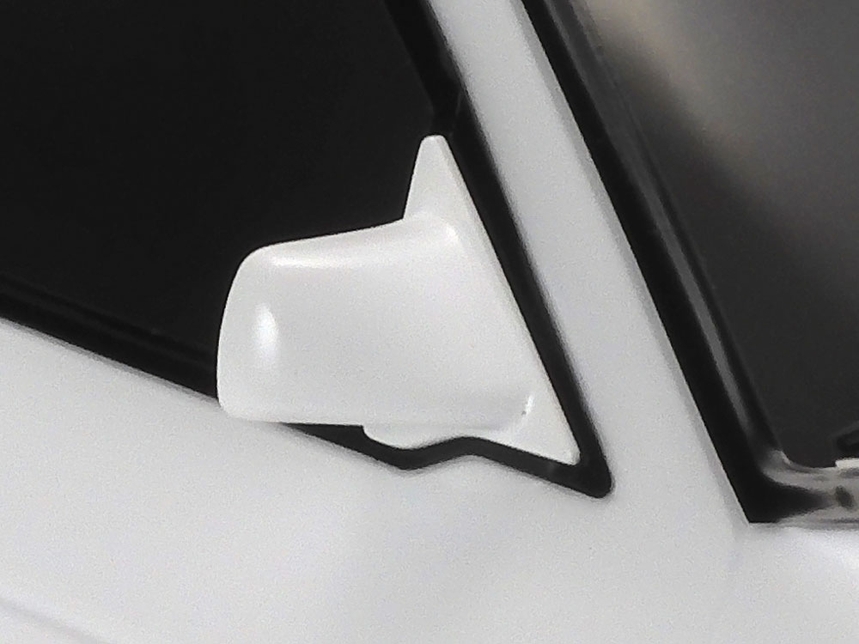

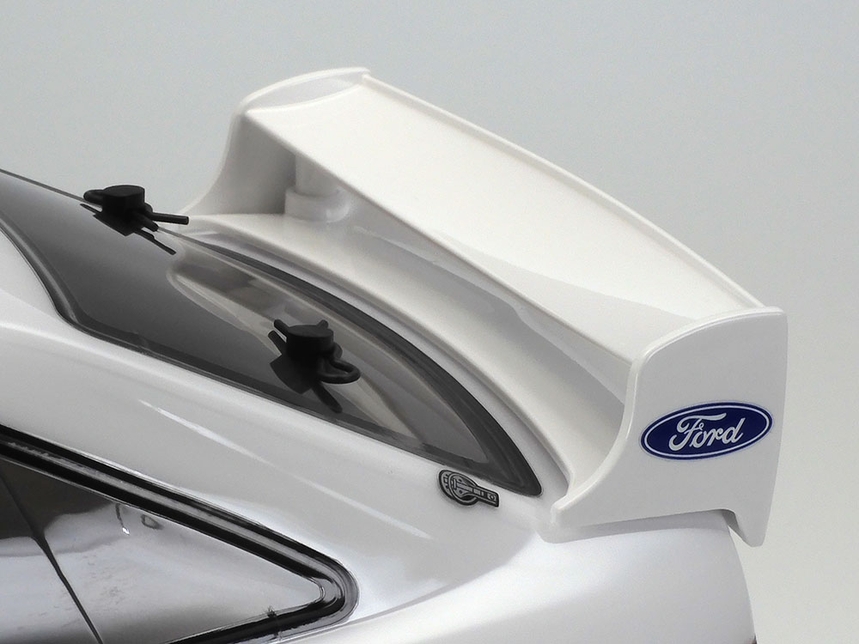

    • Features a 1.0mm thick polycarbonate body.

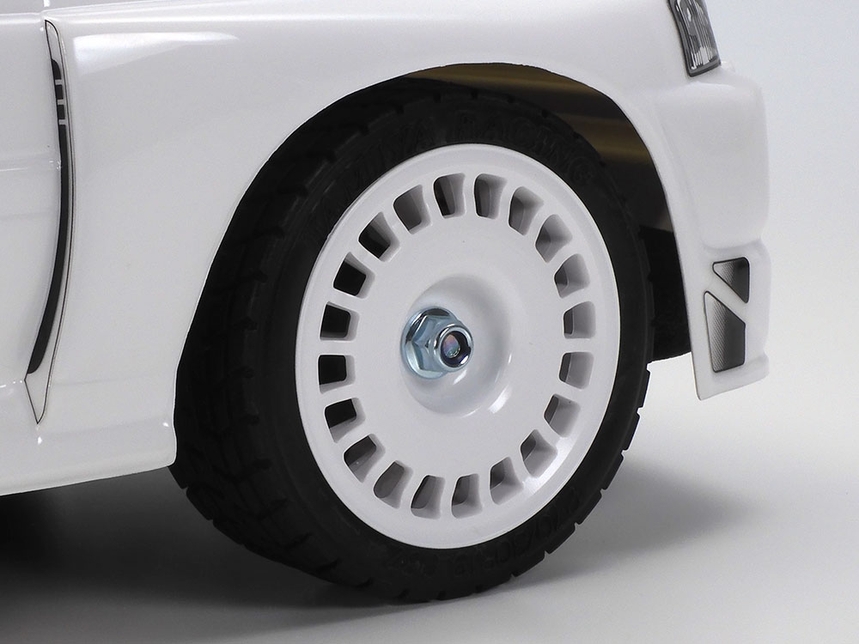

    • Dish-type wheels are molded in white ABS plastic, and paired with treaded tires.
    • Stickers and window painting masking stickers for use in the paint process included.

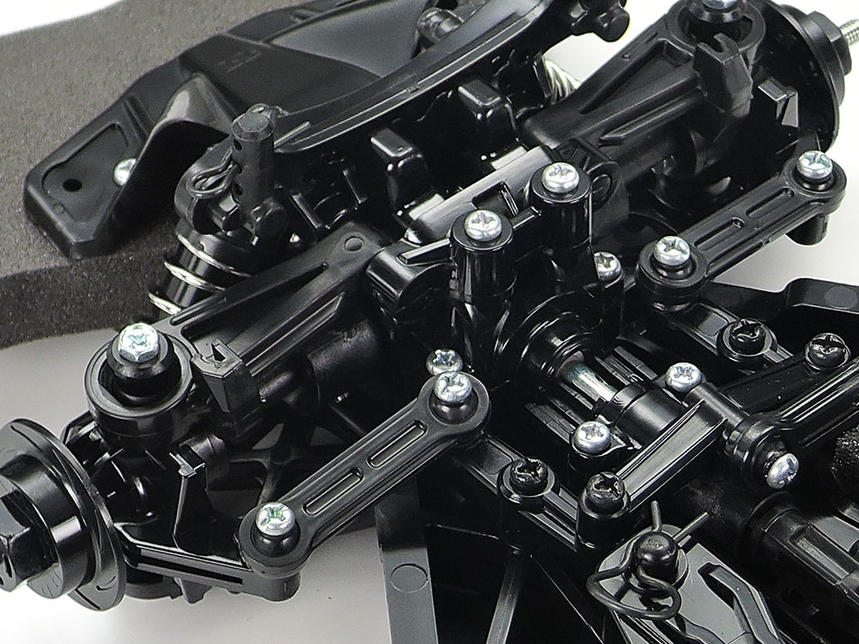

    • The TT-02 chassis is a highly versatile shaft-driven 4WD unit, based around a durable bathtub.

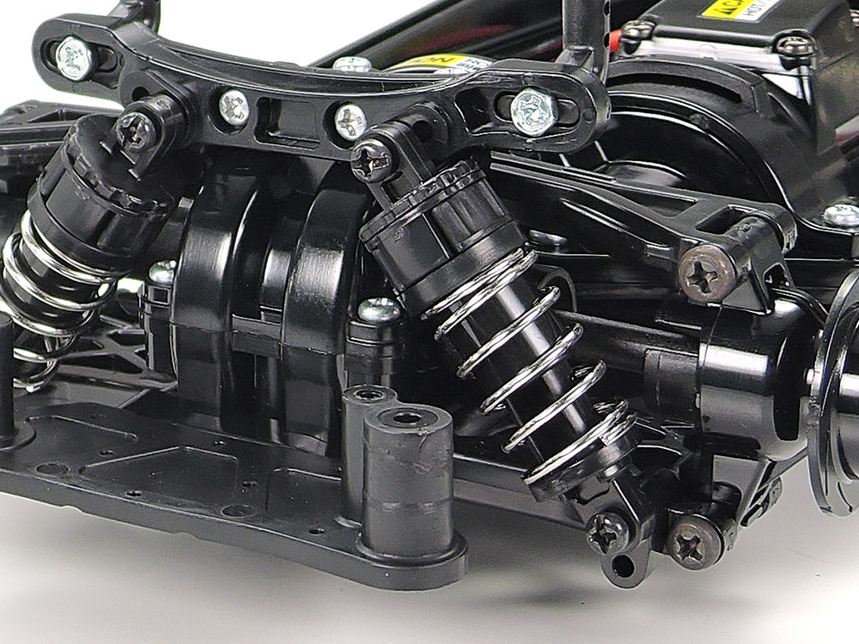

    • 4-wheel independent double wishbone suspension has identical arm and upright parts for ease of maintenance.
    • A wide range of Hop-Up Option parts is available to customize your chassis.

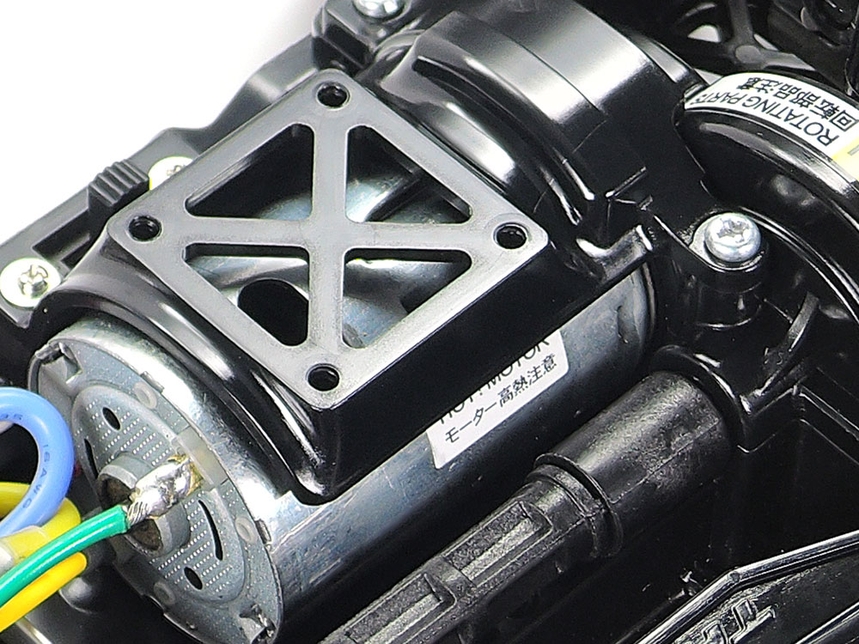

    • Includes 540-brushed type motor.
    • Includes NEW TBLE-04S ESC. Compatible with brushless motors (sensored) of 21.5 turns and higher, and Tamiya brushed motors 25 turns and over.
    • Requires: 2-channel radio, steering servo, 7.2-7.4volt battery pack and compatible charger, and Tamiya PS polycarbonate paint.

    Parts Description
  2. Specifications

    • Adjustable Gear Ratio Yes
    • Bearings Plastic bushing
    • Body Material Polycarbonate
    • Body Stickers Included
    • Chassis Material ABS Plastic
    • Chassis Type TT-02
    • Construction Type Assembly Kit
    • Differential Type Gear
    • Drive Type 4WD
    • Electronic Speed Control (esc) Includes NEW TBLE-04S ESC. Compatible with brushless motors (sensored) of 21.5 turns and higher, and Tamiya brushed motors 25 turns and over.
    • Motor 540-brushed type
    • Requires A 2-channel radio, steering servo, 7.2volt battery & battery charger, and Tamiya PS paint.
    • Scale 1/10
    • Shock Damper Friction type
    • Suspension Fully Independent Double Wishbone
    • Terrain Use On-Road
