Item# 47439

Rc Tt-02 Type-Sr Chassis Kit

Tt-02

Discontinued
Find spare parts Find upgrade parts

The TT-02 series continues to expand with a new high-performance variant. The TT-02 Type- SR is a chassis which takes the Type-S and combines it with a range of ... Learn more

Rc Tt-02 Type-Sr Chassis Kit

  1. Description

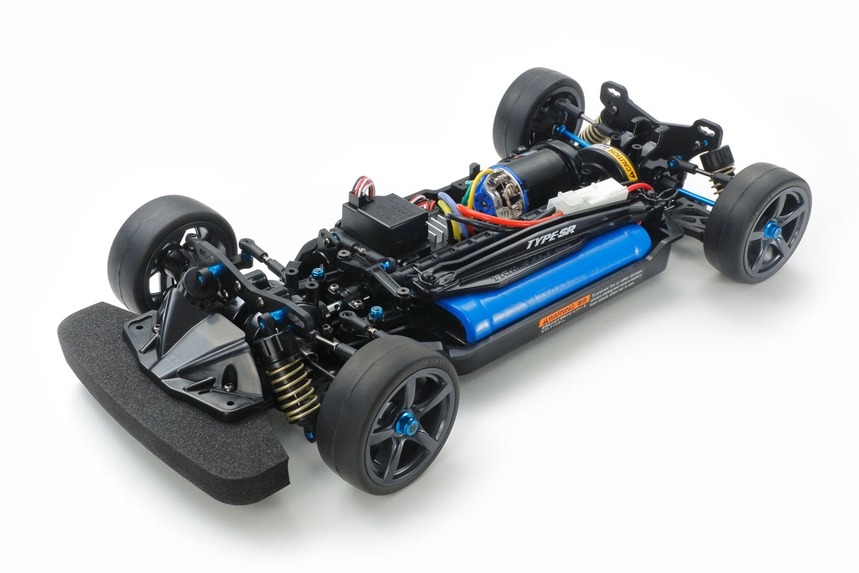

    The TT-02 series continues to expand with a new high-performance variant. The TT-02 Type- SR is a chassis which takes the Type-S and combines it with a range of racing parts. The result: a fun, smooth and fast inexpensive drive straight out of the box!

    Featured Components:
    • Bushings for Adjustable Suspension Mounts (54922)
    • 42mm Lightweight Rear Swing Shafts (53502)
    • TT-02 Oil Gear Differential Unit (54875)
    • 5x5mm Hex Ball Connectors (53968)
    • Full Ball Bearings
    • 42mm Double Cardan Drive Shafts (42239)
    • TT-02 Differential Locking Block (54649)
    • Open Face 5mm Reinforced Adjusters (54869)
    • TT-02 Lower Deck (Hard)
    • FRP Damper Stays (Front & Rear)
    • Hex Head Screws

    New Parts for this variant:
    • Steel Adjustable Rear Suspension Mount
    • Flanged Steering Linkage Pipes
    • 1/10 scale R/C chassis assembly kit. Length: 361mm, width: 185mm. Wheelbase: 257mm.

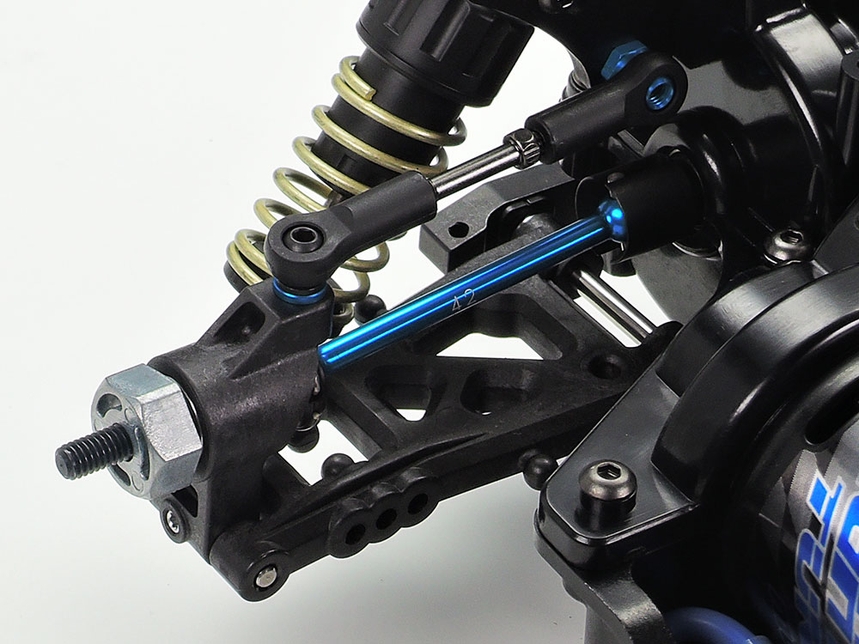

    • Steel adjustable suspension mounts included. It uses plastic bushings which can be exchanged to allow a huge range of toe and roll center settings.

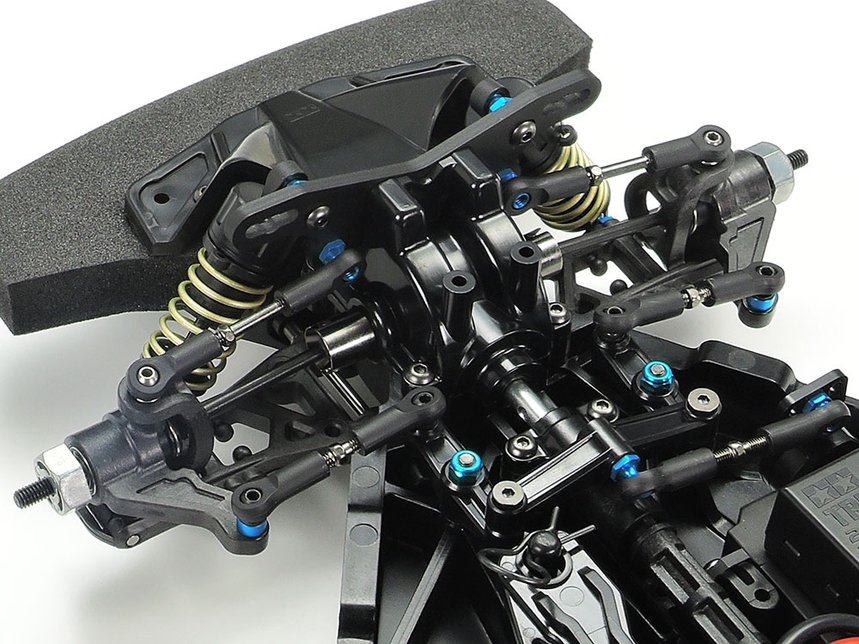

    • New flanged pipes in the steering linkage ensure smooth motion and superior durability.
    • The front of the car uses double-cardan drive shafts, and the rear lightweight shafts, resulting in highly efficient drive.
    • Included pen face adjuster designs and hex hole ball connectors mean swift adjustments.
    • Requires: 2-Channel Radio system, steering servo, ESC, 540-Motor, 7.2volt battery with compatible charger, and 190mm sports car body set.

    Parts Description
  2. Specifications

    • Adjustable Gear Ratio Yes
    • Bearings Includes full ball bearings
    • Body Material Not Included
    • Chassis Material ABS Plastic
    • Chassis Type TT-02SR
    • Construction Type Assembly Kit
    • Differential Type Gear-Type (Oil-Filled)
    • Discontinued True
    • Drive Type 4WD
    • Electronic Speed Control (esc) Not Included
    • Motor Not Included
    • Requires A 2-Channel Radio system, steering servo, ESC, 540-Motor, 7.2volt battery with compatible charger, and 190mm sports car body set.
    • Scale 1/10
    • Shock Damper Oil-filled damper
    • Suspension 4-wheel fully independent double wishbone
    • Terrain Use On-Road
