Rc Stadium Blitzer 2010
-
Description
Realistic Racing Truck

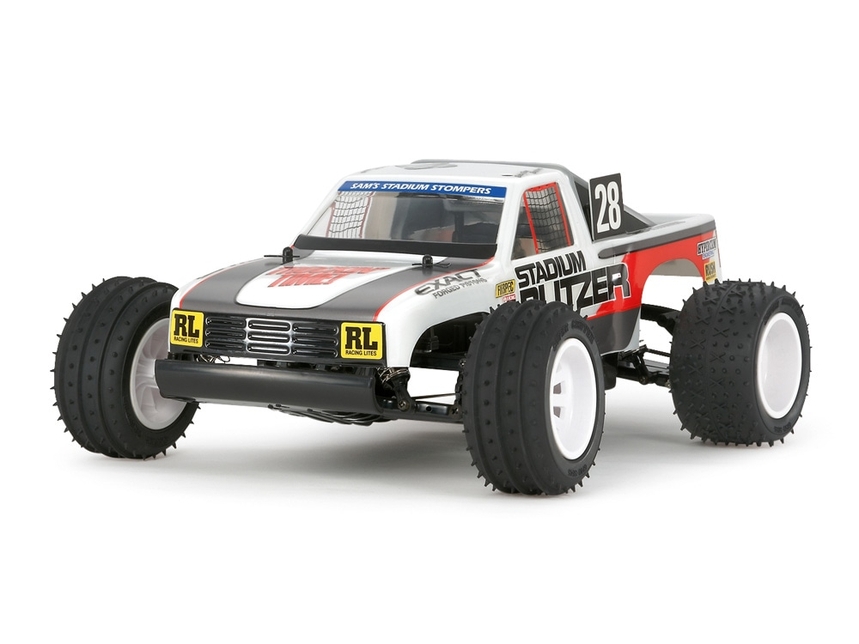

This is a re-release 1/10 R/C assembly kit version of the Stadium Blitzer which was inspired by the exciting off-road racing truck designs seen in the United States. The realistic pick-up truck body is made from durable polycarbonate and can be easily finished with the included stickers. The tough and lightweight ABS bathtub chassis features a rear-mounted motor, rear wheel-drive layout, as well as a 4-wheel double wishbone suspension and large-diameter tires to offer dynamic off-road performance.
Tough 2WD Off-Road Chassis

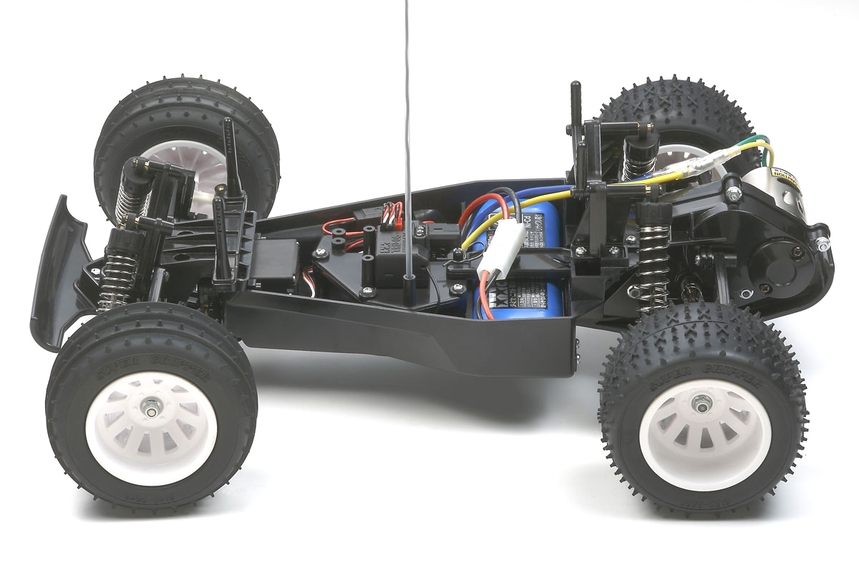

The tough and lightweight ABS bathtub chassis has a rear-mounted motor, rear-wheel drive setup. The sealed gearbox helps protect against dirt and debris and is equipped with differential gears to efficiently transmit the motor power. 4-wheel double wishbone suspension offers plenty of stroke and is equipped with C.V.A. shock units as well as extremely durable monocoque lower arms. The front spiked tires feature three ribs for enhanced stability while the rear tires feature both spikes and an X-shaped tread pattern along the center to ensure high grip.
Specifications
●Length: 410mm ●Width: 295mm ●Height: 165mm ●Weight: 1260g ●Wheelbase: 260mm ●Tread＝Front: 248mm, Rear: 242mm ●Tire Width/Diameter＝Front: 45/98mm, Rear: 52/99mm ●ABS Bathtub Type Chassis ●Rear-Mounted Motor, Rear-Wheel Drive ●3-Bevel Differential Gear ●F/R Double Wishbone Suspension ●F/R CVA Shock Units ●Gear Ratio＝1：10.00 ●Requires an Electronic Speed Controller (sold separately) ●Type 540 Motor
-
Specifications
- Adjustable Gear Ratio Yes
- Bearings Metal and Plastic Bushings
- Body Material Clear Polycarbonate
- Body Stickers Included
- Chassis Material ABS Plastic
- Construction Type Assembly Kit
- Differential Type Gear
- Discontinued True
- Drive Type 2WD
- Electronic Speed Control (esc) Sold Separately
- Led Light Buckets no
- Motor 540-brushed type
- Required To Complete 2-channel radio, steering servo, ESC, 7.2volt battery & battery charger, and Tamiya PS paint.
- Scale 1/10
- Shock Damper Oil-filled damper
- Special Feature 2 The basic layout of the original Stadium Blitzer remains the same
- Special Feature 3 4-Wheel independent double wishbone suspension
- Special Feature 4 CVA oil dampers
- Special Feature 5 Low center of gravity ABS resin bathtub chassis
- Special Feature 6 13T and 15T pinion gears included
- Suspension Fully Independent Double Wishbone
- Terrain Use Off-Road
-
